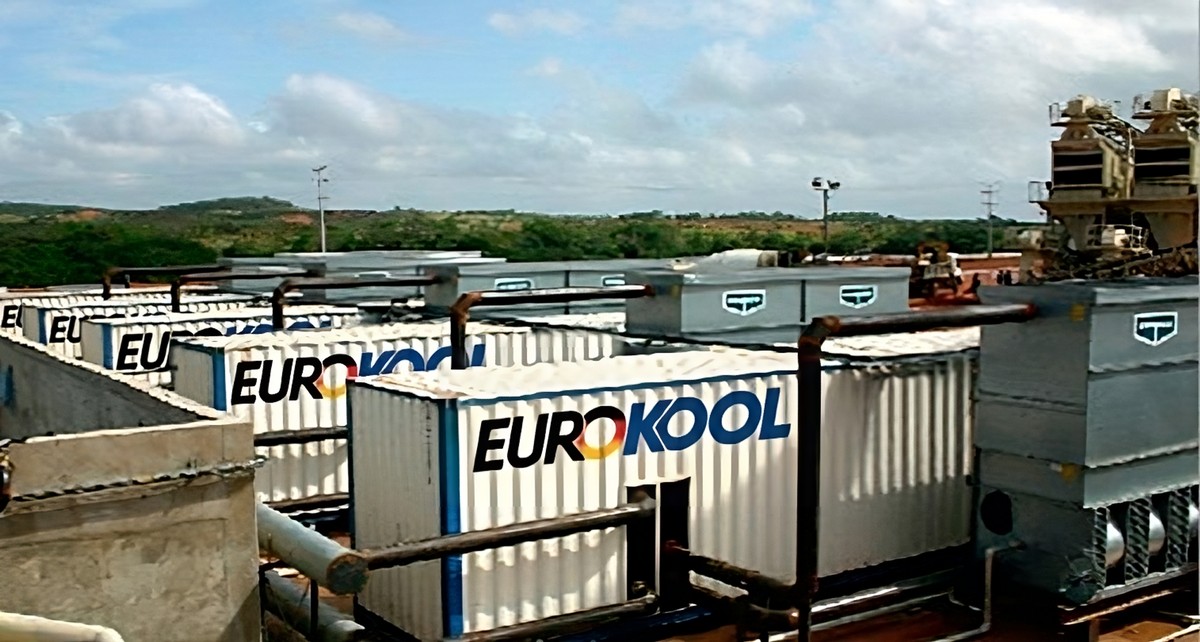

CONTAINERISED HIGH CAPACITY CHILLER PLANTS
2-35 m³ / hr
- Chilled water production utilising either air cooled or water cooled units.
- The chiller is connected to a water basin, either pre-fabricated or insitu design
depending on volume.
The chiller cools the basin water by circulating the water through the chiller and back to the basin and maintains the low temperature by repeating the circulation cycle.
The batch plant or ice plant then draws water from the pre-cooled basin for concrete & / or ice production.
| Chilled water flow capacity (one single unit, based on maximum intake temperature) | 2-35 m³/h |
| Max. intake water temperature | 40° C |
| Min. output water temperature | 3° C |
| Total cooling capacity | 100-1500 kW |
| Outside conditions | 45° C |
| Supply voltage | 400-460 V |
| Frequency | 50/60 Hz |
| Refrigerants | Halocarbons/Ammonia |
